MK-T5 car film cutting machine

Car Film Cutter MK-T5

• Full-vacuum adsorption platform with rolling felt feeding
• Embedded DSP system + 7-inch touchscreen, real-time cutting path
• Cloud vehicle-model database with automatic layout
• Hybrid Servo drive for stable, high-accuracy motion
• Max material width 1650mm, max cutting speed 1000mm/s
• Cuts PPF, window film, vinyl, DTF, TPU and more (thickness ≤1.5mm)
• 12-month warranty with global after-sales support
GET STARTED GET STARTED
200K
Satisfied customers

Flagship Machine Empower Every Cut with MK-T5

ServicesFor All Materials

For
All Materials

PPF, window film, color-change vinyl, DTF, TPU, apparel HTV, labels and signage — the MK-T5 rolling-platform cutter handles them all with vacuum-table precision.
All Services
ADS
Fleet & Commercial Wraps

Vehicle Advertising & PPF Cutting

Cut fleet graphics and full-body PPF from cloud vehicle data on the vacuum table. One-pass processing on the rolling platform keeps film trace-free.
Learn more Learn more

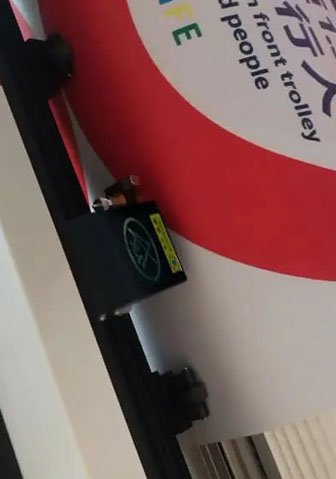

SIGNS
Vinyl & Signage

Clean Cuts for Large-Format Vinyl Graphics

Handle color-change vinyl, reflective film and signage materials up to 1650mm wide with stable hybrid-servo motion and repeatable accuracy.
Learn more Learn more
LABELS
Labels & Decals

Small Parts and Sticker Production

Cut labels, decals and adhesive graphics with adjustable knife pressure from 0–1000g and blade angles of 30°, 45° and 60°.
Learn more Learn more
AUTO BEAUTY
Window Tint & Solar Film

Automotive Beauty & Tint Applications

Process window tint, solar film, stealth covers and TPU on the vacuum table. Hybrid servo drive and 1000mm/s speed suit high-volume detailing shops.
Learn more Learn more
APPAREL
DTF & HTV

Apparel & Transfer Film Cutting

Cut DTF transfers and apparel HTV alongside automotive films on the same MK-T5 platform, with blade angles of 30°, 45° and 60° for different materials.
Learn more Learn more

Customize & Partner

Brand Your Machines

Modern Technology

Personalize with LOGO customization

Exclusive Operation

Join as a MOKE distributor for partnership benefits

Cutting with Unmatched Accuracy

One-Pass Vacuum Cutting

The full-vacuum table holds material perfectly flat so cuts finish in one pass with no traces and no repeated film removal.

Automatic Rolling Feed

Continuous rolling-platform feeding handles long-format work smoothly, with a maximum single cut of 1600×800mm.

Cloud Auto-Layout
& Nesting

Global vehicle-model data and smart nesting optimize every layout so a whole car is cut in one job with minimal waste.

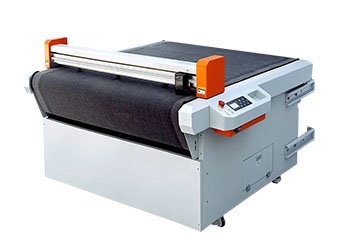

MK-T5 PPF cutting machine precision accuracy

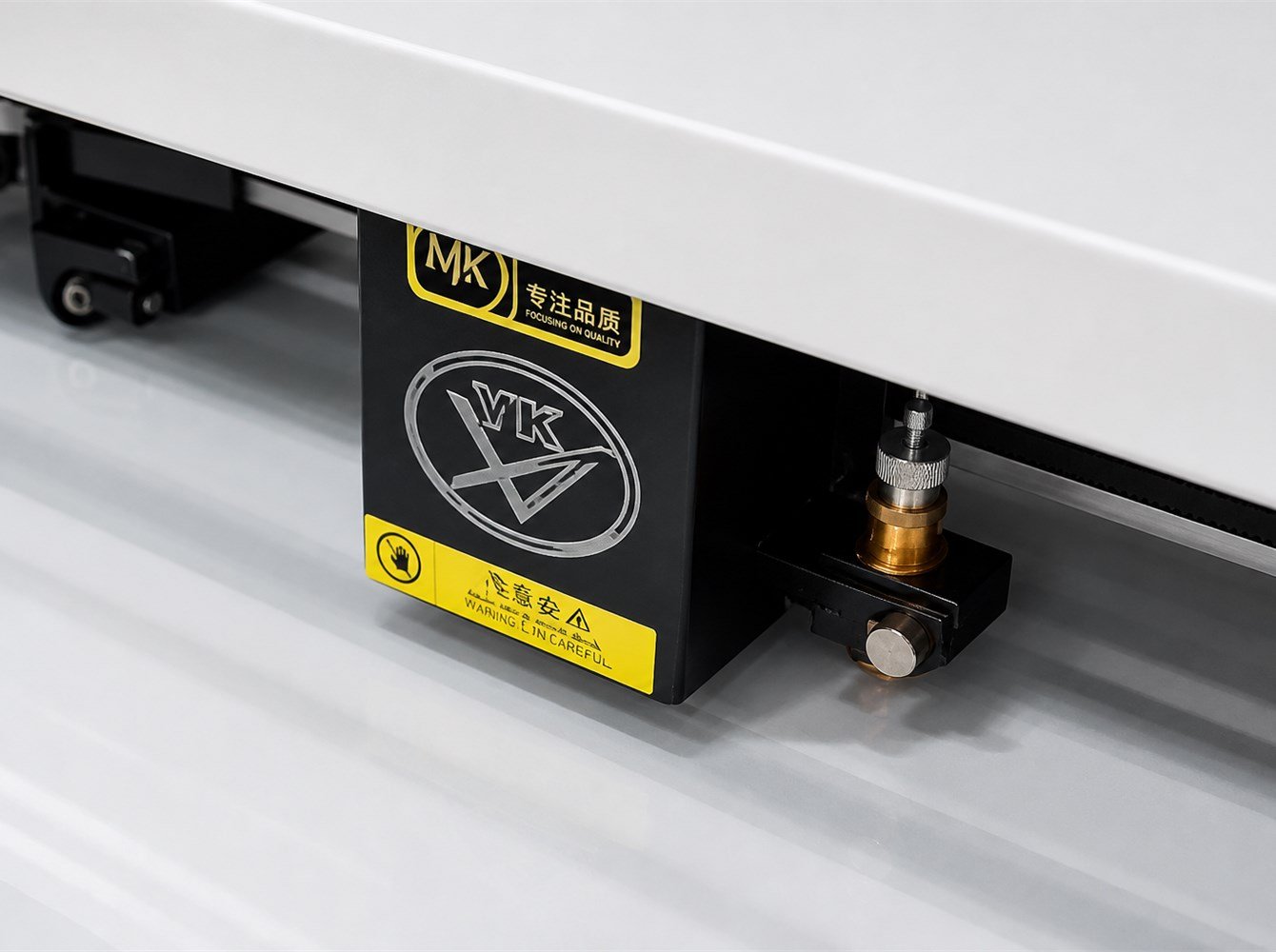

Innovative Cutting
Technology

Linear Racing Car Tech: Smooth, precise adjustments. No Slip, High Stability:
Electromagnetic pressure ensures accuracy.

Efficient

1000mm/s speed
0.01mm precision
1650mm width

Machine Parameters

ModelMK-T5
X-axis machining dimensions1600mm (non edge cutting) / 1520mm (edge cutting)
Y-axis machining dimensionsSheet: 800mm / Roll material: whole roll
Maximum applicable material width1650mm
Applicable material thickness≤1.5mm
Applicable material typesReflective film, stealth car cover, solar film, PPF, PET, PVC, adhesive tape, DTF, TPU
Material feeding methodAutomatic transmission device
Material fixing methodVacuum adsorption platform
Maximum cutting speed1000mm/s
Maximum knife pressure0–1000g (10 groups of knife pressure)
Pressure regulationAdjustable per 10 grams of force
Knife handle diameterΦ2.0mm
Cutting blade tip angle30°, 45°, 60°
Drive modeHybrid Servo
Control systemEmbedded DSP + 7-inch touchscreen
Cutting headNon-vibrating blade; max cutting size 1600×800 (rolling continuous processing)
Data interfaceUSB 2.0
Machine packaging size2280 × 1650 × 1350mm
Net weight / Shipping weight450KG / 550KG

Parts

ItemQ'ty
Cutter blade (30° / 45° / 60°)Set
Blade holder2
USB signal transmission cable1
Allen wrench (tool kit)1 set
Power cable1
User manual1
// TECH

Stable
Clear
Built to Last

0"
inch touchscreen
0
mm/s max cutting speed
450kg
net machine weight

Shipping and Packaging

Image Image

Shipping

Image Image

Packaging

Image Image

Containerization
