Centrifugal Adsorption Fan
240 CFM airflow with 8 adjustable levels keeps PPF and vinyl flat on the table for stable, wrinkle-free cutting.
200K

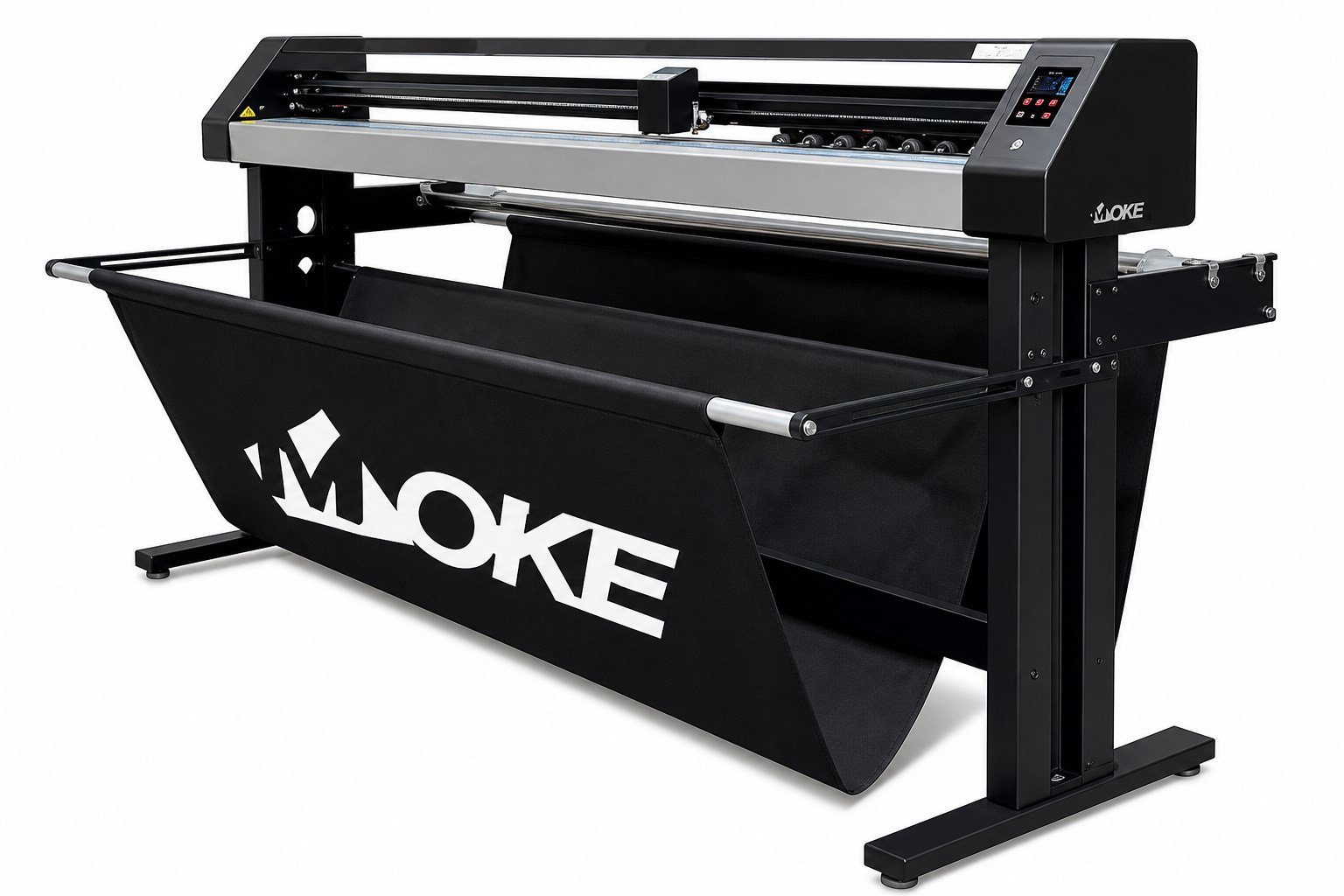

| Plotter Model | MK-L6 | MK-L8 | MK-905X Elite |
| Mainboard(dual control intelligent chip ) | 256-bit | 512-bit | 256 bit servo |
| Control panel(color high-definition display screen ) | 3.5 inch | 5.0 inch touchscreen | 4.3 inch |
| Drive System | Dual silent drive system | Imported dual silent drive system | Imported dual silent servo system |
| Adhesion fan power | x | 12V 1.0A-2.0A Silent High Wind Centrifugal Turbine Adsorption Fan | 12V0.6A-0.8A Silent High Wind Centrifugal Turbine Adsorption Fan |
| Adhesion capacity (CFM-8 level -18.8/m2) | x | 240 | 100 |
| Feeding Method | High precision imported integrated steel spindles | ||
| Original Positioning | Adjustable clearance system for flexible origin setting | ||
| Positioning method | Arbitrary point positioning origin contour cutting | Arbitrary point positioning origin contour cutting | Arbitrary point positioning origin contour cutting |
| Maximum feed width | 1650mm | 1650mm | 1650mm |
| Maximum cutting width | 1550mm | 1550mm | 1550mm |
| Maximum cutting speed | 800mm/s | 1200mm/s | 1500mm/s |
| Maximum cutting length | Infinite length | Infinite length | Infinite length |
| Maximum cutting thickness | 1.0mm | 1.0mm | 1.0mm |
| Knife pressure (Digital adjustment) | 0-1000g | 0-1000g | 0-2000g |
| Mechanical accuracy | 0.01mm | 0.01mm | 0.01mm |
| Repetitive accuracy | 0.01mm | 0.01mm | 0.01mm |
| Types of drawing pens | Various water-based,oil-based, atomic drawing pens,poster pens with a diameter of 11.4mm | ||
| Drawing instruction | DM-PL/HP-GL automatic recognition | ||

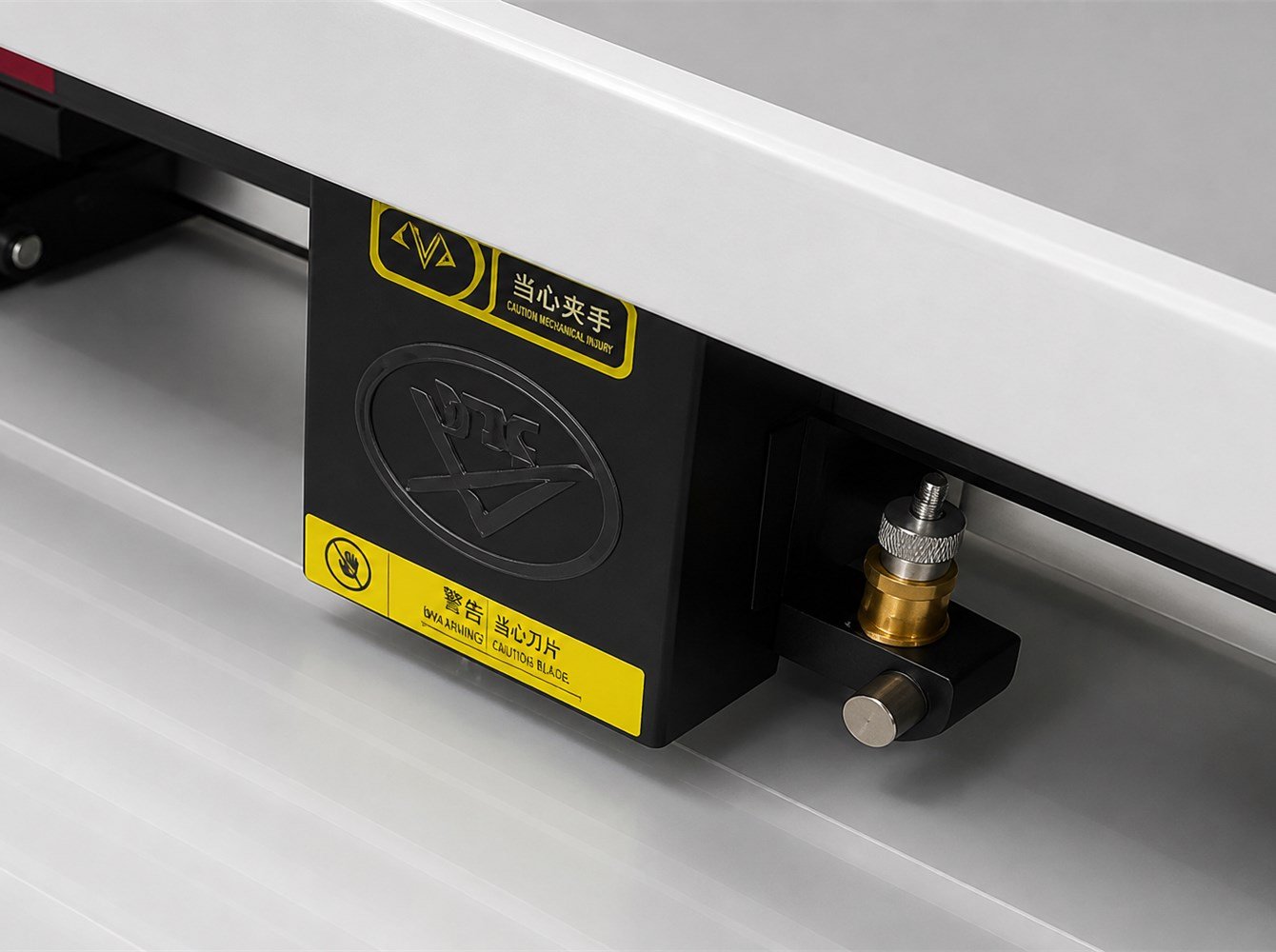

| Knife holder/cutting blade | Various types of knife holders with a diameter of 11.4mm*26mm~30mmRoland 20/30/45/60 degrees with a blade diameter of 1.8mm, and othersharp knives of the same model can be used interchangeably | ||
| Datainterface | USB2.0/U disk/serial port | USB2.0/U disk/serial port | Ethernet port/USB2.0/U storage card |
| Fully automatic film windingsystem(complete set) | …… | …… | Gear reduction speed control motor |
| Film winding motor power/voltage | …… | …… | 220V/50Hz-60Hz/60W-100W/150mA |
| Reduction ratio of film rolling motor | …… | …… | 3:1-10000:1，1uF/500V |
| Rated speed of film winding motor | …… | …… | 1850r/min，IP20 B |
| Host voltage/power supply | AC110V/220V±10%，50-60Hz | ||
| Power consumption | <350W | <450W | <400W |
| Operating environment | Temperature:+5-+35,humidity30%-70% | ||
| Packaging size (Wooden Box size) | 2005*460*580mm | ||
| Installation dimensions | 1850*1000*1100mm | 1850*1000*1100mm | 2000*1100*1300mm |
| G.W(Heavy bracket) | 75kg | 75kg | 75kg |
| N.W | 65kg | 65kg | 65kg |
| CBM | 0.55m3 | 0.55m3 | 0.55m3 |
| Noise Level | Standard | Ultra-Quiet | Ultra-Quiet |
| Design | Standard | Modern lmproved | Exquisite High-End |
| Types of Cutting Materials: | |||
| PPF | √ | √ | √ |
| TINT/PET/Windows Film | x | √ | √ |
| Vinyl/ Color Change Film | x | √ | √ |
| Item | Q’ty |
| Main unit | 1 |
| Support frame | 1 |
| Non woven fabric (cloth bag) | 1 |
| Cutter blade | 5 |
| Knife holster | 1 |
| support foot | 4 |
| USB signal transmission cable | 1 |
| power cord | 1 |
| Mounting screws | 24 |
| Cloth basket bracket screws | 4 |
| Paper feed retaining ring | 4 |
| Allen wrench (M6) | 1 |
| Hand screw | 4 |
| Cloth basket bracket | 2 |
| Installation Instructions | 1 |
